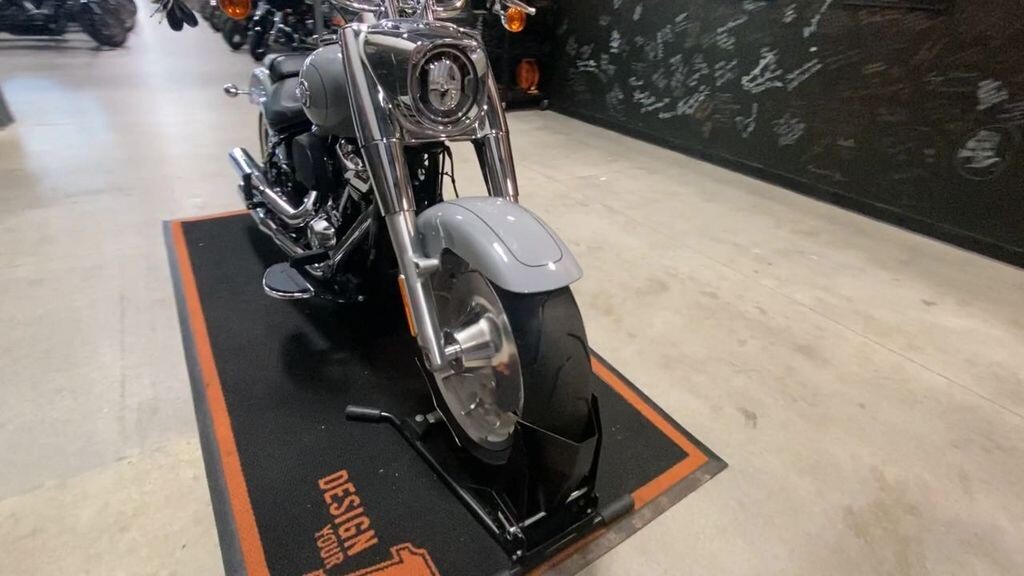

2024 Harley-Davidson<sup>®</sup> Fat Boy<sup>®</sup> 114 BILLIARD GRAY W/ PINSTRIPE

The original fat custom icon. Loved since day one, the Harley-Davidson® Fat Boy 114 stands out with bright chrome and bold finishes.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.6 in
- Ground clearance:

  4.5 in
- Trail:

  4.1 in
- Wheelbase:

  65.6 in
- Tires, front specifications:

  160/60R18,70V,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  670 lbs
- Weight, in running order:

  699 lb
- Tire, type:

  Michelin® Scorcher 11 front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.7 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  94 HP / 70 kW @ 4750 rpm
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  129 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, type:

  Front and rear silver, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED bullet front turn signals, Incandescent bullet rear turn signals
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
